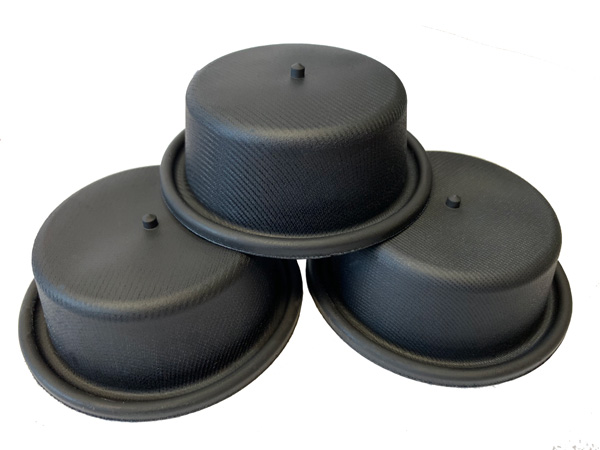

Fabric-reinforced diaphragms utilise a layer of an engineered fabric material as part of the diaphragm construction. This layer of fabric gives tremendous design flexibility. A very thin-walled Rolling Diaphragm can withstand high pressures while remaining very flexible and responsive to minor pressure variations.
Fabrics made of polyester, nylon and silk are commonly used for most applications with Nomex fabric used for those applications exposed to high-temperature. For those applications that require extremely high-strength material, resistance, diaphragm, DiaCom offers our unique Dia.Tuff fabric.
All types of elastomers, such as, nitrile, EPDM, fluorocarbon, neoprene, silicone and fluorosilicone can be used in the fabric-reinforced diaphragms.
